Description

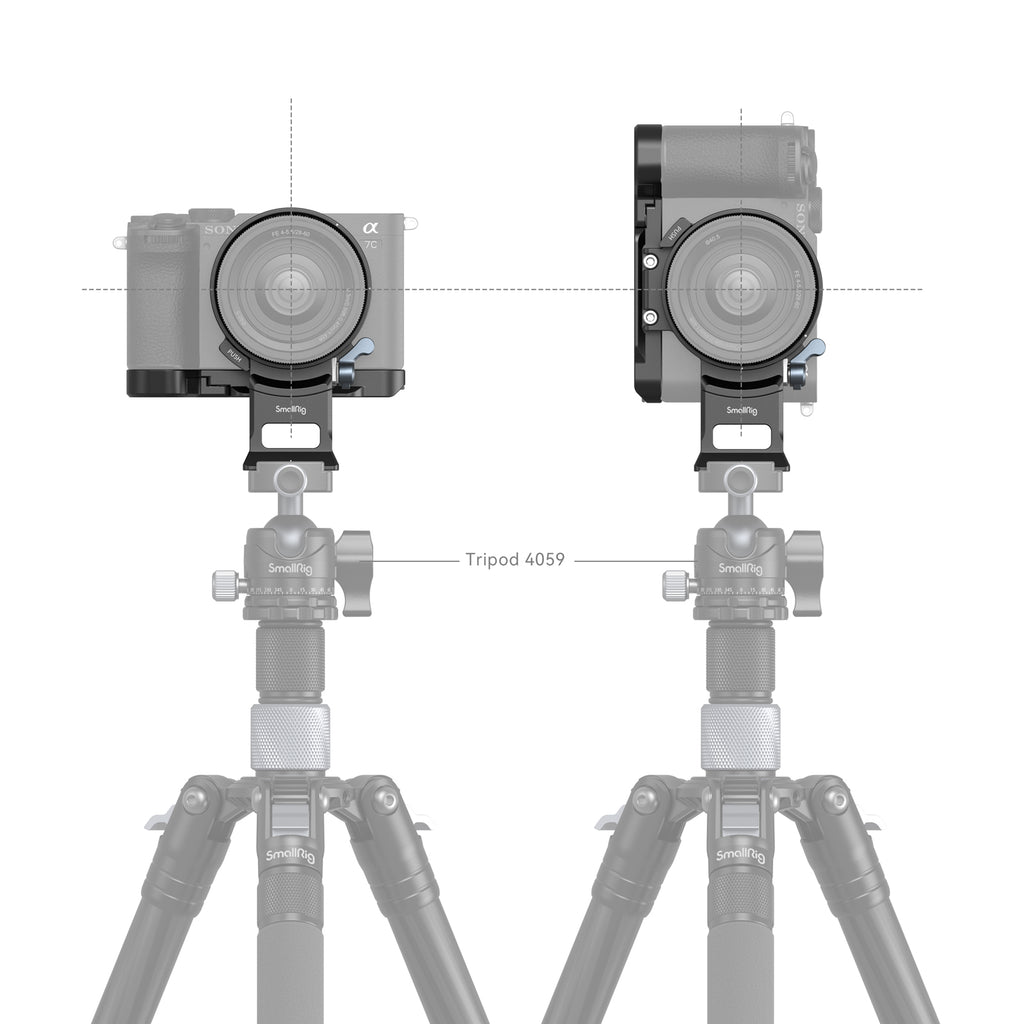

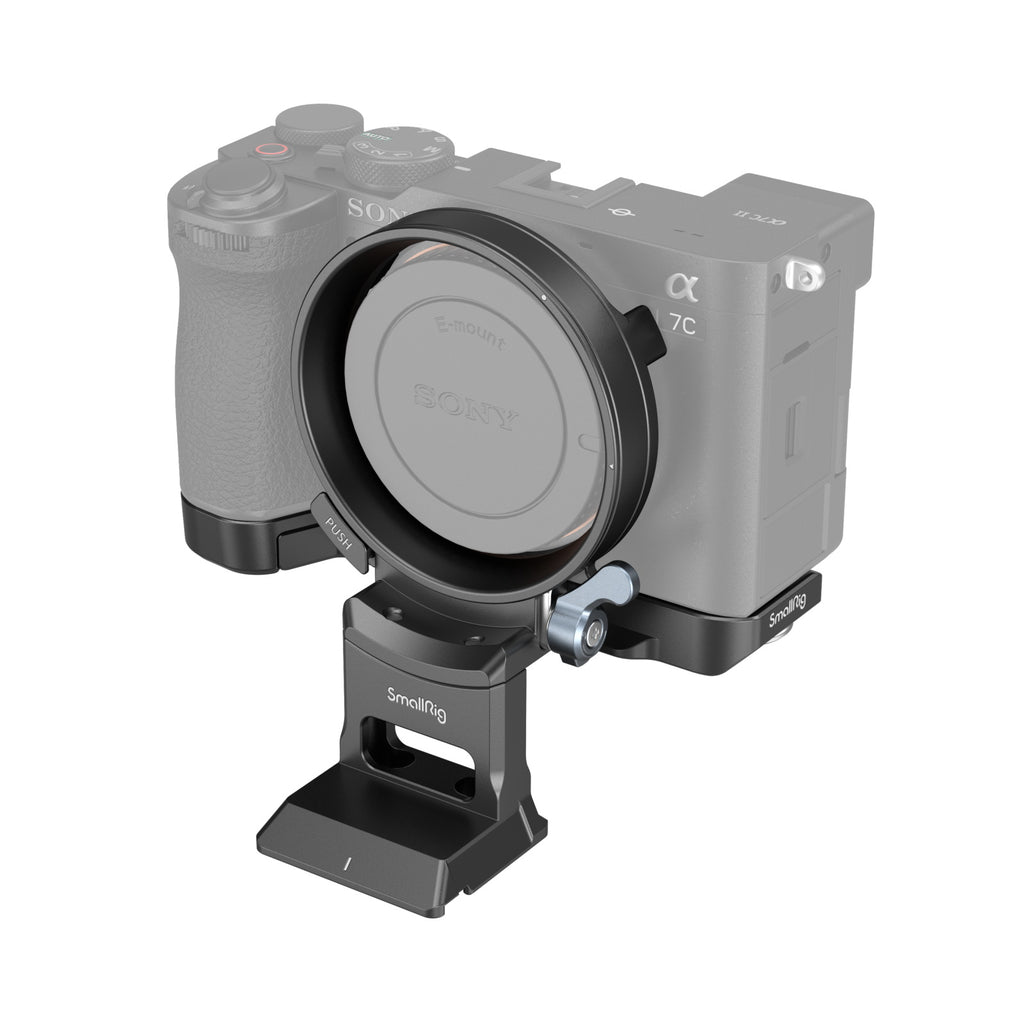

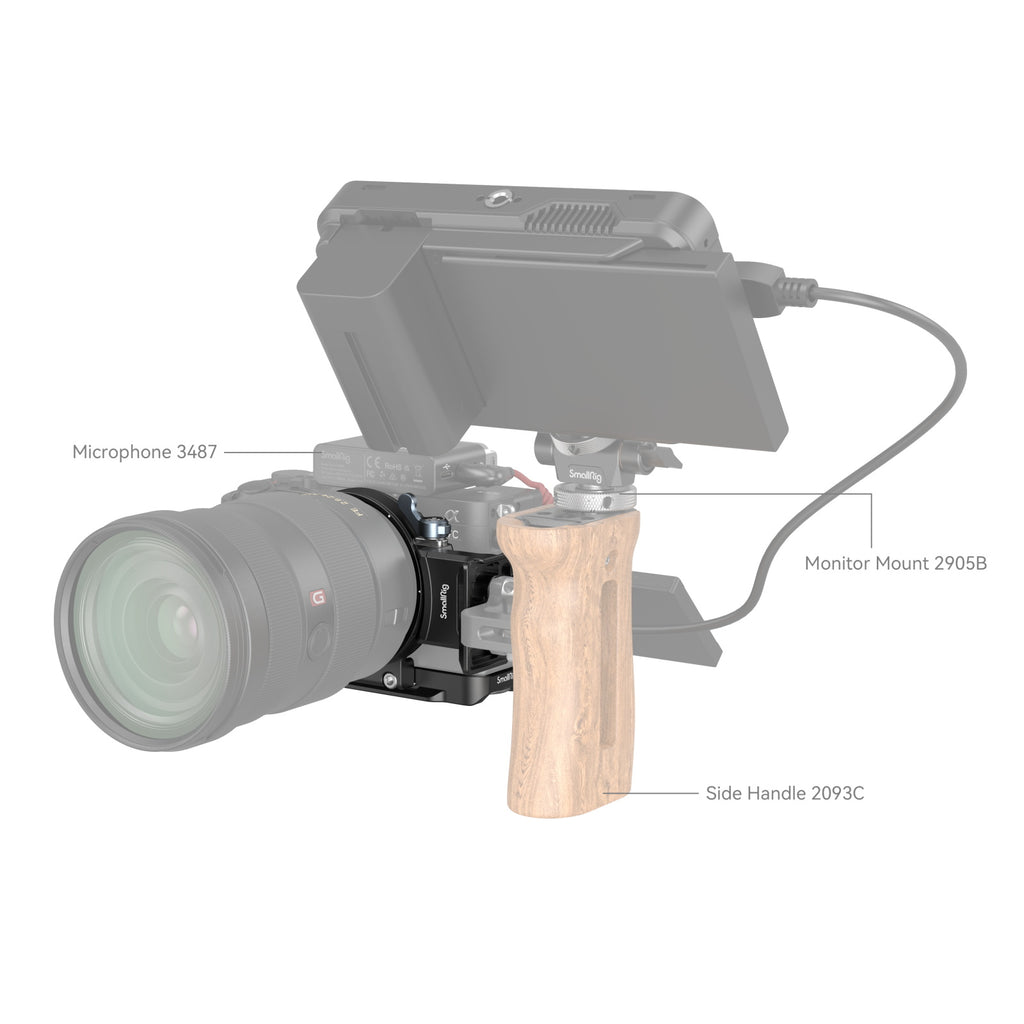

SmallRig Horizontal-to-Vertical Mount Plate Kit for Sony Alpha 7C II / Alpha 7CR 4570 is designed to quickly switch between horizontal and vertical modes without adjusting the lens's optical axis. It locks the bottom of the camera via a 1/4"-20 screw and anti-twist pin and maintains full access to the LCD flip screen and ports and features built-in pads that prevent scratches and twisting. Compatible with Arca-type / Manfrotto RC2 tripod, the mounting plate can rotate by 90 degrees by unlocking a knob to switch between horizontal and vertical shooting. It's bottom 1/4"-20 and 3/8"-16 threaded holes also support Handle 2093C, etc. to enhance stability in handheld mode. The base plate can be used separately to meet your various needs, with a hinge arm at the battery door fitting the camera body perfectly for a better grip experience. It also comes with a strap slot, a 1/4"-20 threaded hole for the wrist strap, a quick-release plate, etc.; and a magnetic flat-head screwdriver for easy installation and release.
Note:
1. Only supports lens adapter ring of less than 63mm in outer diameter. Please first remove the lens adapter ring support (if any).
2. This product is not compatible with some E-mount full-frame lenses, please refer to the attachment for details.
KEY FEATURES
- Quickly switches between horizontal and vertical modes without adjusting the lens's optical axis.
- Gives full access to buttons and ports (LCD flip screen, battery door, card slot).
- Supports Arca-Swiss / Manfrotto RC2 tripod.

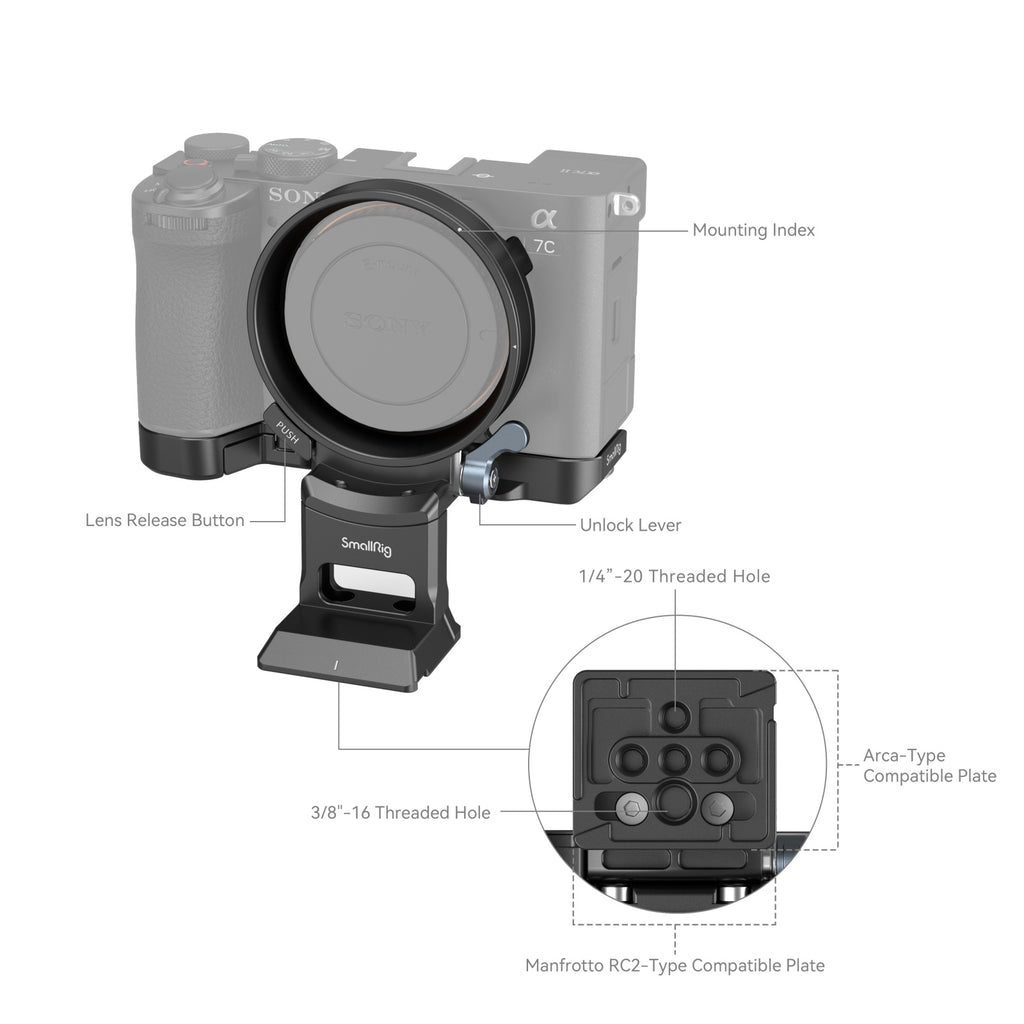

- 1/4"-20 threaded holes, 3/8"-16 threaded holes for the handle, magic arm, plate, etc.

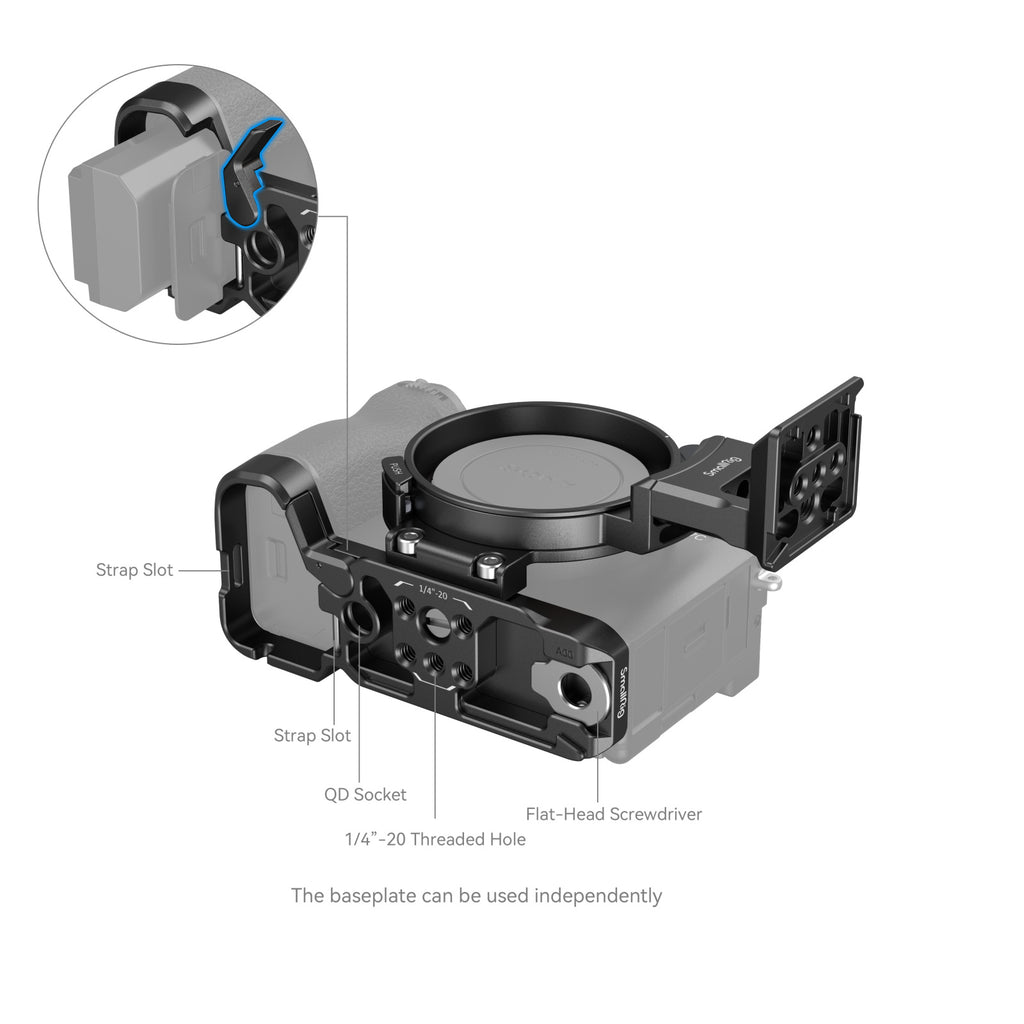

- It can be used independently to protect the bottom of the camera and improve the grip.
COMPATIBILITY
Sony Alpha 7C II
Sony Alpha 7CR

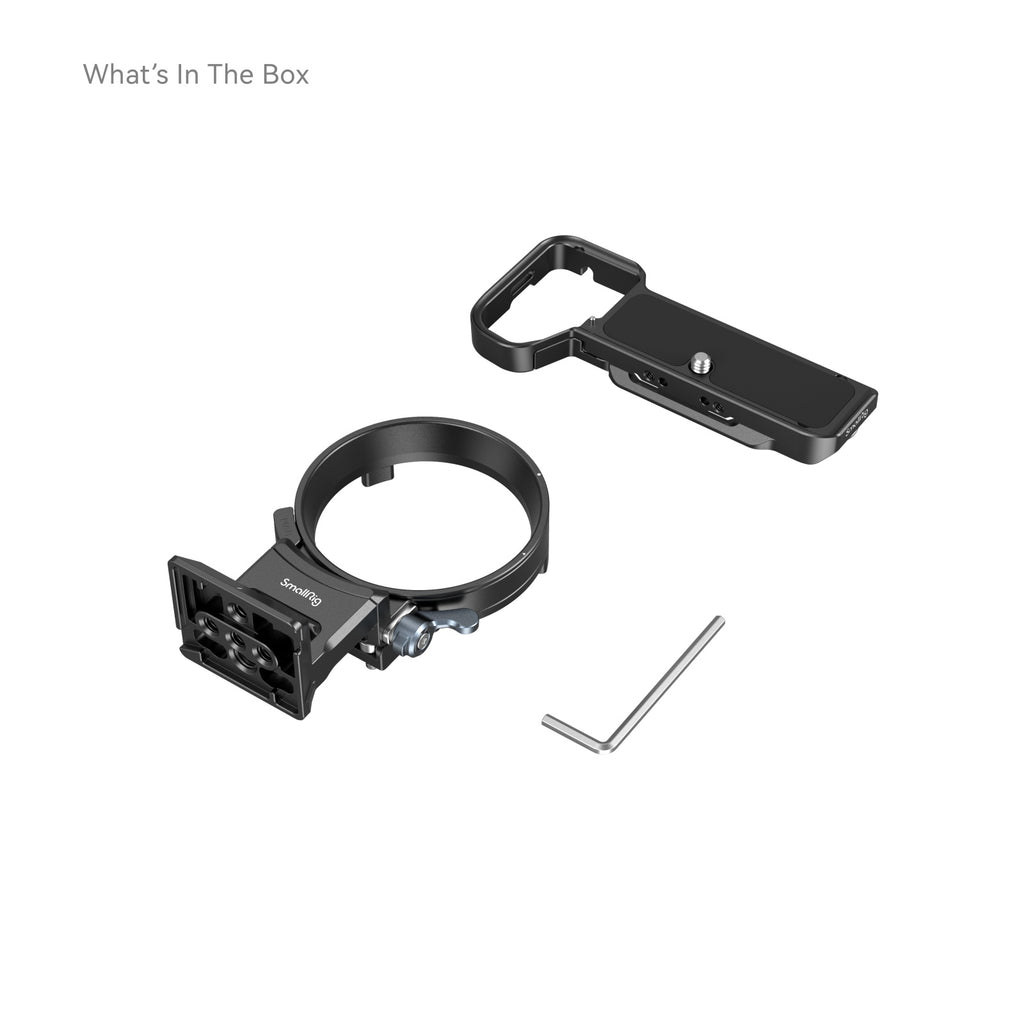

PACKAGE INCLUDES
1 x Bottom Mount Plate
1 x Horizontal-to-Vertical Mount Plate
1 x Allen Wrench
OTHER DETAILS

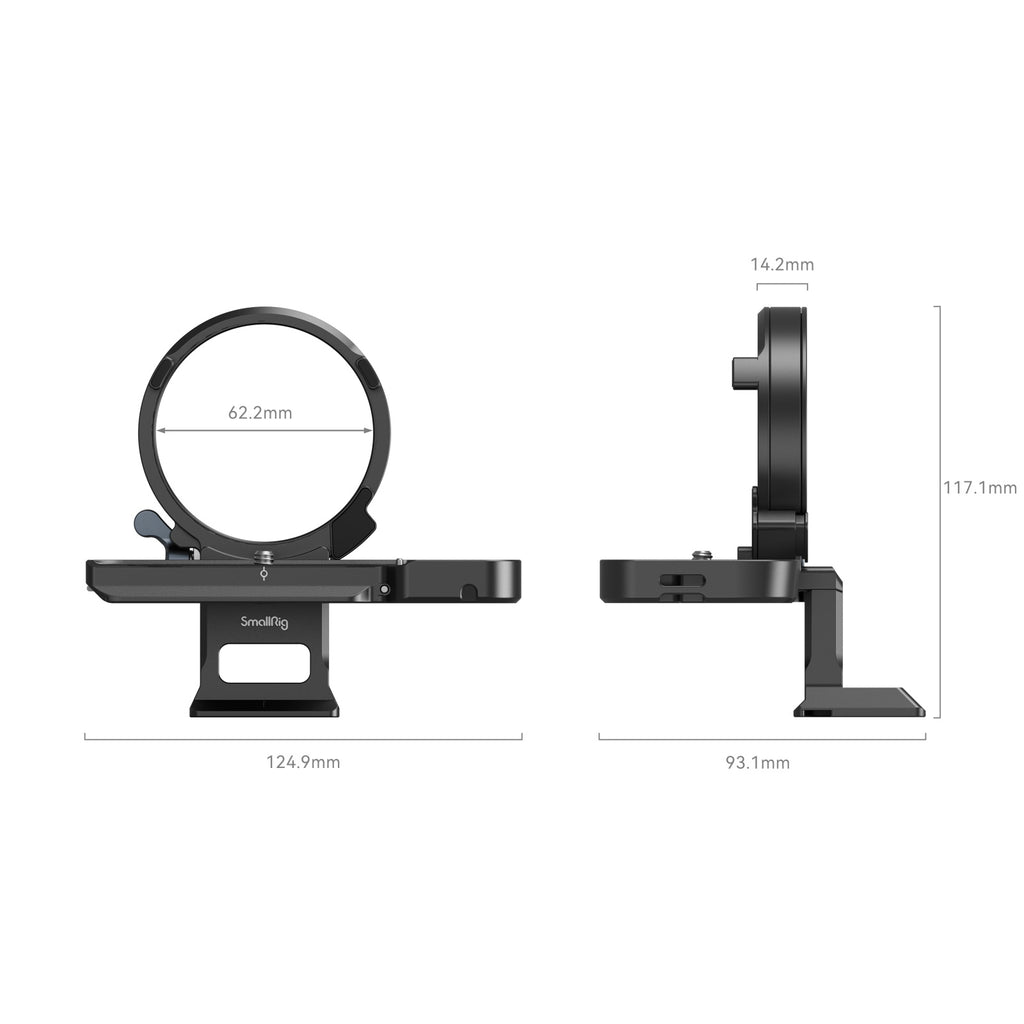

Product Dimensions: 133.7 × 82.6 × 57.3mm
Package Dimensions: 102 × 185 × 60mm
Product Weight: 178 ± 5.0g
Package Weight: 273 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel
